AHD 8-Channel Home CCTV Security System with Internet & 5G Viewing

You deserve the best when keeping you and your family safe, enter the 8-Channel CCTV Security Kit. This kit is a serious upgrade to any home or office security. The 8-Channel CCTV Security Kit has an HD Digital Video recorder with multiple view ratios so your picture is clear and crisp. The camera also works with your mobile device allowing LIVE view and an easy to install Plug and Play that makes setting up simple, fast and reliable. Whatever your area the incredible cameras can be placed indoor or outdoor, are waterproof and have night vision so they can keep watch so you don’t have too. Get piece of mind and Buy Yours Today!

Features & Benefits

• Adopt the latest second generation H.264 compression technology for video coding and decoding. Image quality appears clearer and network transmission faster.
• Support motion detection and alarm recording.
• IE Browser remote monitoring: Supports computer real time monitoring though IE browser.
• Supports backup through USB and Internet. Download backup from Internet.
• CMS centralized management platform. Monitor multiple DVR’s simultaneously through network.
• VGA: Supports highest resolution in 1280*1024 pixels.
• Supports 6 different operations synchronously. Recording / Playback / Network transmission / Backup / Mobile Phone monitor / Platform operations.
• Built in remote ID and domain name.
• Mobile surveillance: Supports 3G smartphones.
• Supports PTZ (pan/Tilt/Zoom) camera control. All around, 360-degree rotation. Up, down, left and right)
• Clear night surveillance with its infrared LED
• Can be used 24 hours a day.

DVR Specifications

Video System: NTSC / PAL
Operation System: Linux Based
Operation Interface Graphical User Interface (GUI)
Video Input / Output BNC: 4-Channel Input / 1-Channel Output
Other Video Output: VGA/HDMI
Audio Input / Output: Input: 1ch/ Output: 1ch
Display Resolution: NTSC: 720P / PAL: 720P
Recording Frame Rate: NTSC: 120 fps 720P/ 960H;/
PAL: 100 fps @4CH 720P/ 960H
Record Resolution Selectable: 720P/ 960H
Record Mode: Continuous /Time Schedule /Motion Detection
Network Function: Support Live View with IE & Mobile Phone
Network: RJ45, 10M/100M
Net Protocol: TCP/IP, PPPoE, DHCP and DDNS
Remote Access: LAN or Internet Browsing
PTZ Control: RS-485
HDD Interface SATA II/III, Support between
320GB and 4TB, (Not Includes)
USB Backup/USB 2.0
Remote Control: IR Remote Control
Power Supply: DC12V
Hard Drive Not Included

Camera Specifications

Image Sensor: CMOS
TV System: NTSC / PAL
Horizontal Resolution: 720P
Lens3.6mm
Number of IR LEDs: 24 LEDs
Infrared Illumination (Night Vision)up to 65ft
Minimum Illumination: 0.0 Lux
S/N Ratio> 48dB
Video Output1.0Vp-p, 75 ohms
Operating Temperature-25AF~122AF / -32AC ~50AC
Weatherproof: Yes
Power: 12V DC
Material Metal Body & ABS+PC Lid

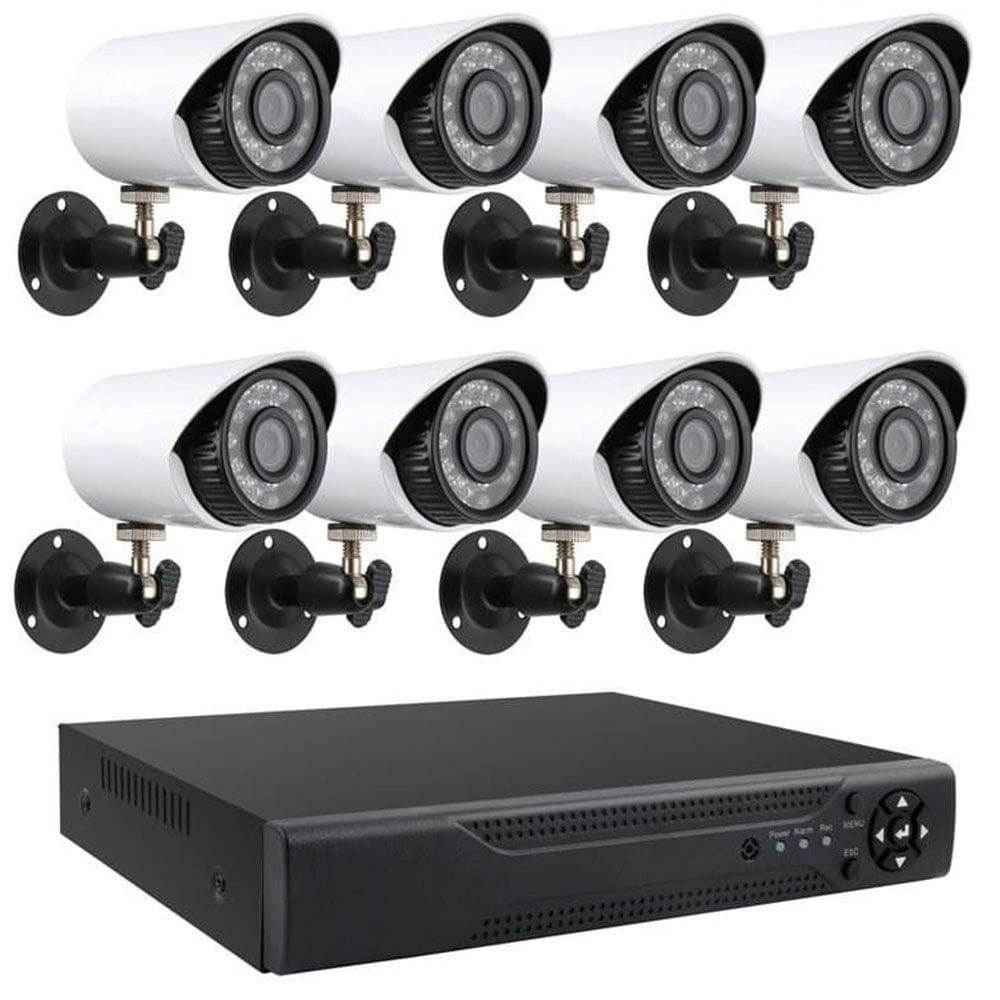

What’s in the box
1x 8Ch HDMI Security DVR
8x Colour IR Outdoor Security Cameras
8x 20m Video + Power All-in-one Cable for Security Cameras
1x Power Supply for DVR
2x Power Supply for Cameras
1x IR Remote Control
1x Mouse
8x Wall Mounts
1x User’s Manual
